Product Overview
Industrial dust collectors capture airborne particulate matter at the generation source to maintain regulatory air quality standards and protect downstream machinery. These systems operate via negative pressure created by a centrifugal fan, drawing particulate-laden air through duct networks into a filtration chamber. Solid particles separate from the airstream via surface filtration media or inertial impaction, dropping into an integrated hopper, while clean air exhausts back into the facility or vents outdoors through heat-recovery circuits.
-
![Fd Serise Bag Dust-collector]()
Fd Serise Bag Dust-collectorFD serise Dust-collector is a new type of bag filter, the filter designed to surface filtration, filter media level of the structure; this construction method makes a large filter space only a small height, the surface filter another...view more -
![Cartridge Type Dust-collector]()
Cartridge Type Dust-collectorCartridge type dust-collector is mainly used for the collection of suspended dust and particulates, both for air pollution control and, as part of the production process, to ensure efficient and continuous on-line dust collection. The...view more -

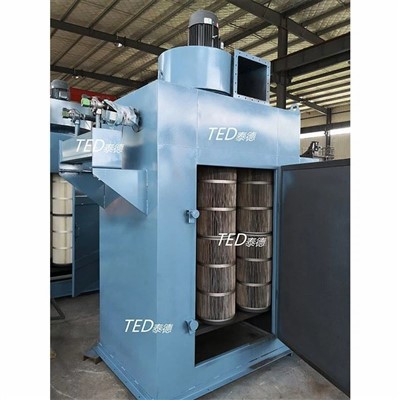

![Dust-removers for Dust Suction and Elimination Systems]()
Dust-removers for Dust Suction and Elimination SystemsTED produces a complete range of dust suction and elimination systems. The range of dust-removers includes cartridge-filters with automatic cleaning systems using jets of conuterflow compressed air. These filters ore generally used for...view more -
![Dust Collector]()
Dust CollectorTed has a complete vacuum and dust collection system. The dust collector series includes a cartridge filter with an automatic cleaning system that uses a conical compressed air jet.view more
Types & Configurations
|
Configuration |
Primary Filter Medium |
Optimal Application |
Key Operational Advantage |
|
Cartridge Dust Collector |
Pleated cellulose/spunbond polyester cartridges |
Fine, dry dust (welding fume, laser cutting, powder coating) |
High filtration surface area in a compact footprint; lower air-to-cloth ratio. |
|
Baghouse (Pulse-Jet) |
Woven or felted filter bags (Polyester, Nomex, PTFE membrane) |
Heavy dust loads, high temperatures, abrasive particles (wood, grain, metal grinding) |
Handles heavy continuous particulate loads; high temperature resistance (> 200 deg C with specialty felt). |
|
Cyclone Separator |
None (Inertial centrifugal force) |
Heavy chips, sawdust, coarse bulk material pre-separation |
No filter media to blind; removes large particles before secondary filtration stages. |
Working Principle / Process
Capture:
Hoods positioned at point-of-source extract dust using calculated capture velocities (100 to 200 FPM face velocity).
01
Conveyance:
Particulates travel through industrial ductwork at transport velocities (3,500 to 4,500 FPM) to prevent settling.
02
Filtration:
Air enters the collector housing. Heavier particles drop directly into the hopper via gravity and baffles; finer particles are intercepted on the exterior surface of filter bags or cartridges.
03
Cleaning:
Differential pressure (DP) sensors monitor filter restriction. When DP reaches a pre-set threshold (4 to 6 in. wg), solid-state timers trigger diaphragm valves to release a compressed air pulse (90 PSI) through venturi nozzles, dislodging accumulated dust cakes downward.
04
Discharge:
Collected material exits via rotary airlock valves, slide gates, or 55-gallon drum covers under continuous negative pressure.
05
Continuous On-Line Cleaning: Differential pressure-controlled pulse-jet system cleans individual rows of filters sequentially without interrupting the main exhaust fan operation.
Modular Housing Construction: Laser-cut 10 gauge carbon steel panels welded continuously on exterior seams, bolted with closed-cell neoprene gasketing to maintain structural integrity up to +/-20 in. wg negative pressure.
Venturi-Assisted Pulse Delivery: Die-cast aluminum venturis maximize secondary air induction, reducing compressed air consumption per cleaning cycle by 30 percent.
Explosion Isolation & Venting: Integrated rupture panels sized per industrial safety standards and chemical isolation valves for combustible dust handling (aluminum, titanium, wood flour).
Technical Specifications
|
Technical Parameter |
Specification Metric / Value |
|
Airflow Range |
1,000 to 60,000 CFM (1,700 to 102,000 m3/h) per standard unit module |
|
Static Pressure Capability |
Up to 16 in. wg (4,000 Pa) total system resistance |
|
Filter Efficiency |
99.9 percent collection efficiency down to 0.5 micron particles |
|
Compressed Air Requirement |
80 to 90 PSI clean, dry instrument air (-40 deg F dew point) |
|
Electrical Supply |
230V / 460V / 575V, 3-phase, 60Hz (IEC options: 400V, 50Hz) |
|
Standard Materials |
Structural carbon steel with zinc-rich epoxy primer & polyurethane topcoat (120 um dry film); optional stainless steel internal components |
Applications
Metal Fabrication:
Removal of weld fume, plasma/laser cutting oxidation, and grinding sparks.
Woodworking:
High-volume capture of coarse sawdust, MDF particles, and fine sanding dust utilizing cyclone pre-separators.
Bulk Material Handling:
Dust control at conveyor transfer points, silo venting, and batching mixing stations in cement and mineral processing.
Chemical & Pharmaceutical:
Containment of active pharmaceutical ingredients and dry chemical powders utilizing HEPA safety after-filters.
Plate Processing: Raw steel sheets are cut using high-power fiber laser cutting systems to maintain dimensional tolerances within +/-0.1 mm, ensuring airtight flange alignment.
Welding Standards: Structural and pressure-retaining welds executed by certified personnel using GMAW and FCAW processes. Continuous seal welding is applied to all internal dirty-air plenums to prevent dust bypass.
Surface Treatment: Components undergo a multi-stage aqueous alkaline wash and conversion coating before electrostatic powder coating, followed by thermal curing to achieve salt spray resistance exceeding 1,000 hours.
Quality Verification: Every housing module undergoes structural seam testing and leak checks prior to factory release. Fan assemblies are dynamically balanced to precision vibration standards.
Customization & OEM
Inlet/Outlet Orientation:
Modular side, top, or hopper inlet transitions engineered to match existing plant duct layout configurations.
Fan Integration:
Top-mounted direct-drive plenum fans or external floor-mounted centrifugal fans sized for specific duct losses.
Discharge Customization:
Integration with screw conveyors, rotary airlocks, or pneumatic conveying adapters.
Control Architecture:
Custom programmable logic control panels featuring industrial processors, variable frequency drive fan control, and communication protocols for plant-wide network integration.
Selection Guide
To determine the correct collector model, calculate or verify the following operational metrics:
Total Air Volume (CFM): Sum the required capture velocities and hood dimensions across all extraction points.
Air-to-Cloth Ratio (A/C): Select ratios based on dust characteristics—heavy, abrasive dusts require lower ratios (3:1 to 4:1); fine, light dusts tolerate higher ratios (6:1 to 7:1).
Operating Temperature & Moisture: Verify gas stream temperature to select appropriate filter media and prevent condensation.
Regulatory Classification: Determine if the application processes combustible dusts requiring specialized explosion safety compliance.
Frequently Asked Questions
